| Specification | Aluminium Alloy 6061-T6 |
|---|---|

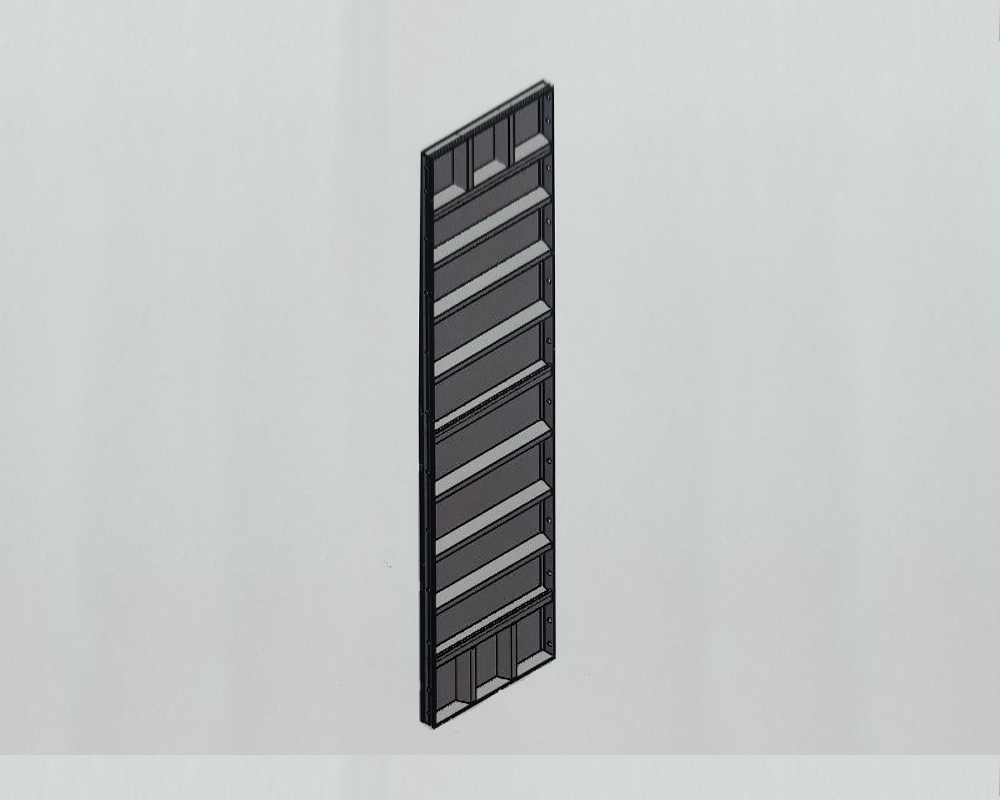

| Wall Panel | 600(W) * 2400(H) |
| 500(W) * 2400(H) | |
| 450(W) * 2400(H) | |
| 300(W) * 2400(H) |
| Specification | Aluminium Alloy 6061-T6 |
|---|---|

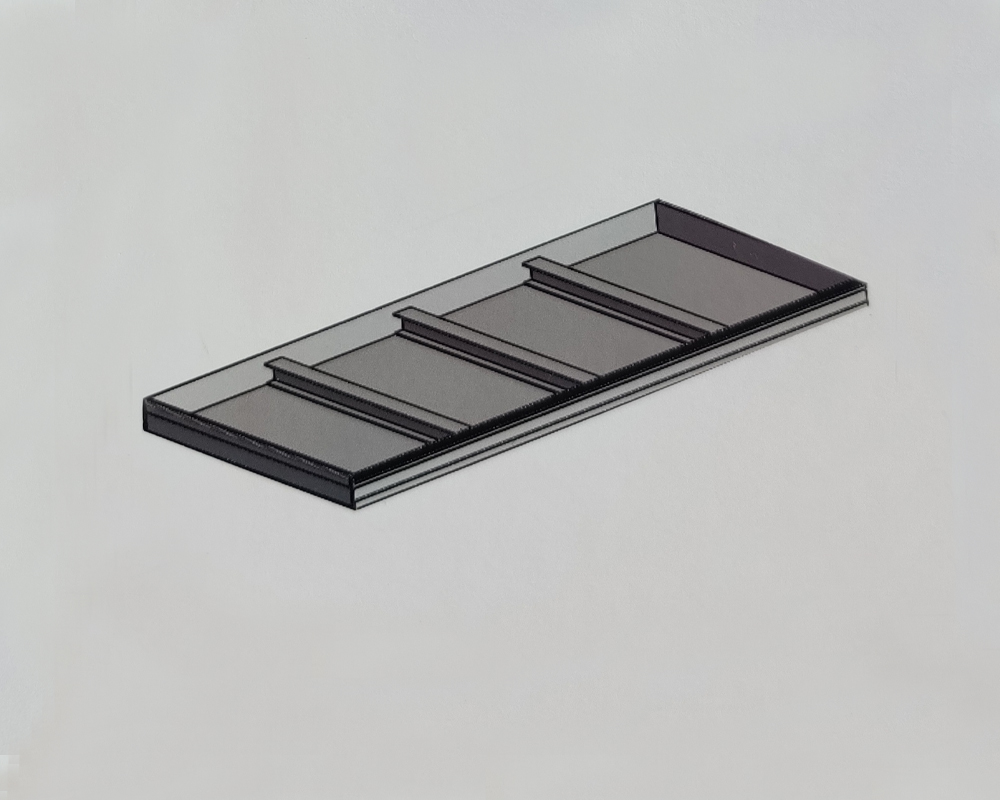

| Deck Panel | 600(W) * 1200(L) |
| 500(W) * 1200(L) | |
| Beam Panel | 300(W) * 1050(L) |
| 300(W) * 900(L) |
| Specification | Aluminium Alloy 6061-T6 |
|---|---|

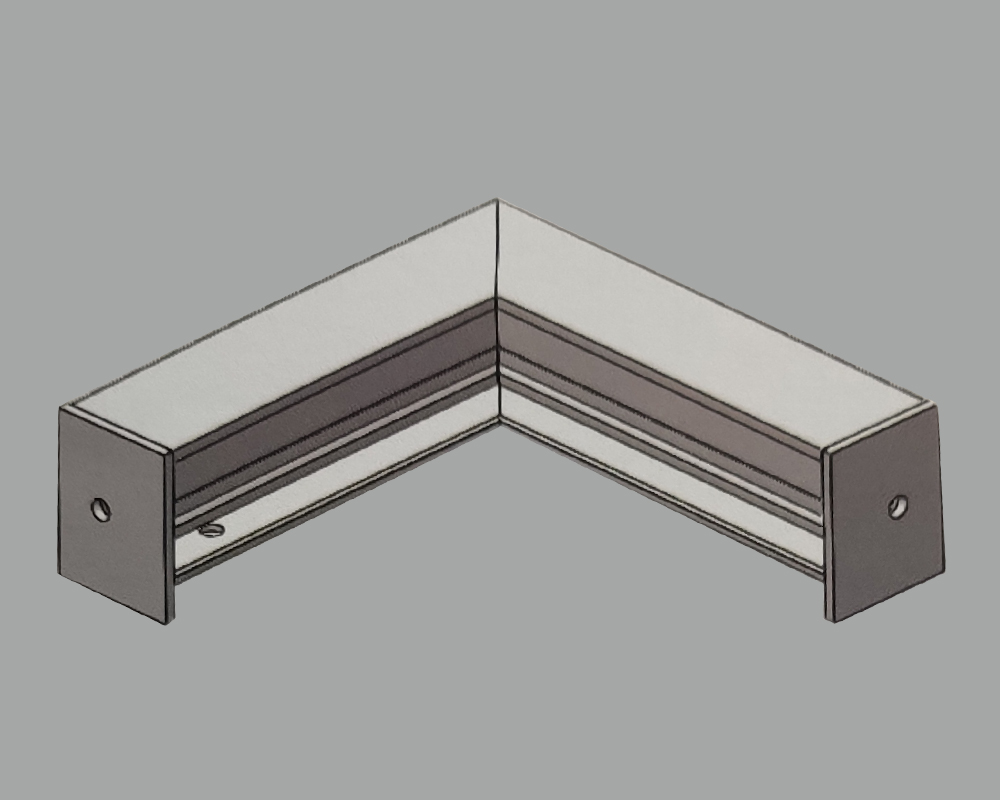

| Slab Inner Corner ICI | Soffit Corner Internal. Connection between wall panel & slab panel (internal side) |
| Specification | Aluminium Alloy 6061-T6 |
|---|---|

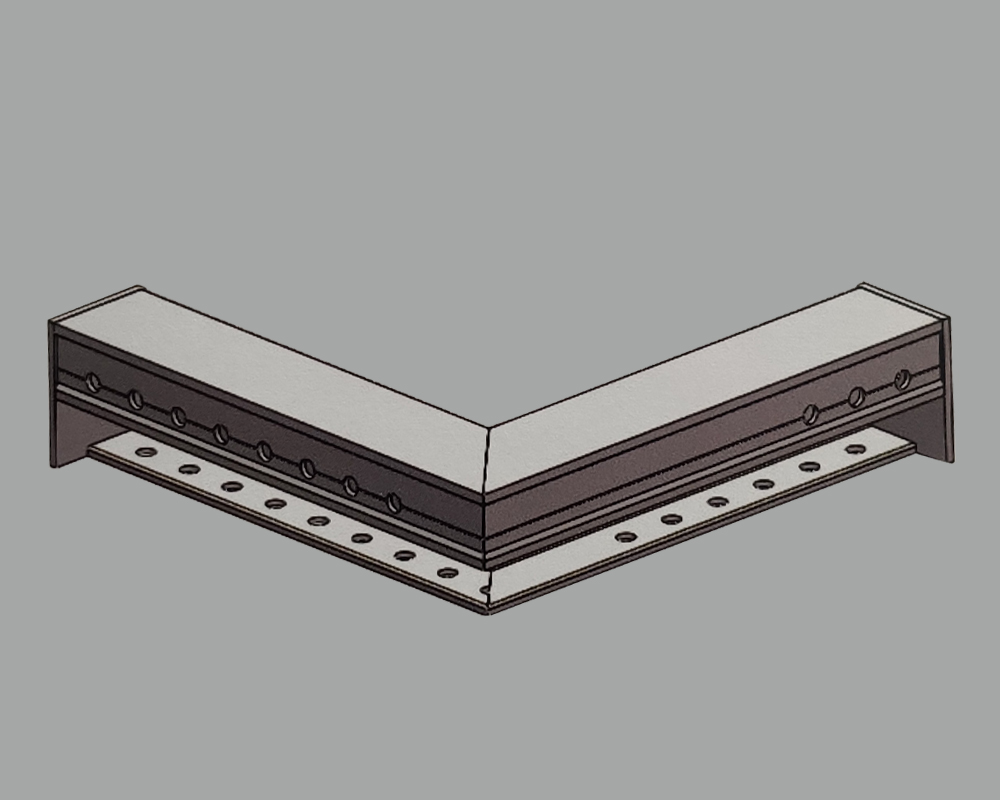

| Slab Outer Corner ICE | Soffit Corner external. Connection between wall panel & slab panel,beam panel |
| Specification | Aluminium Alloy 6061-T6 |
|---|---|

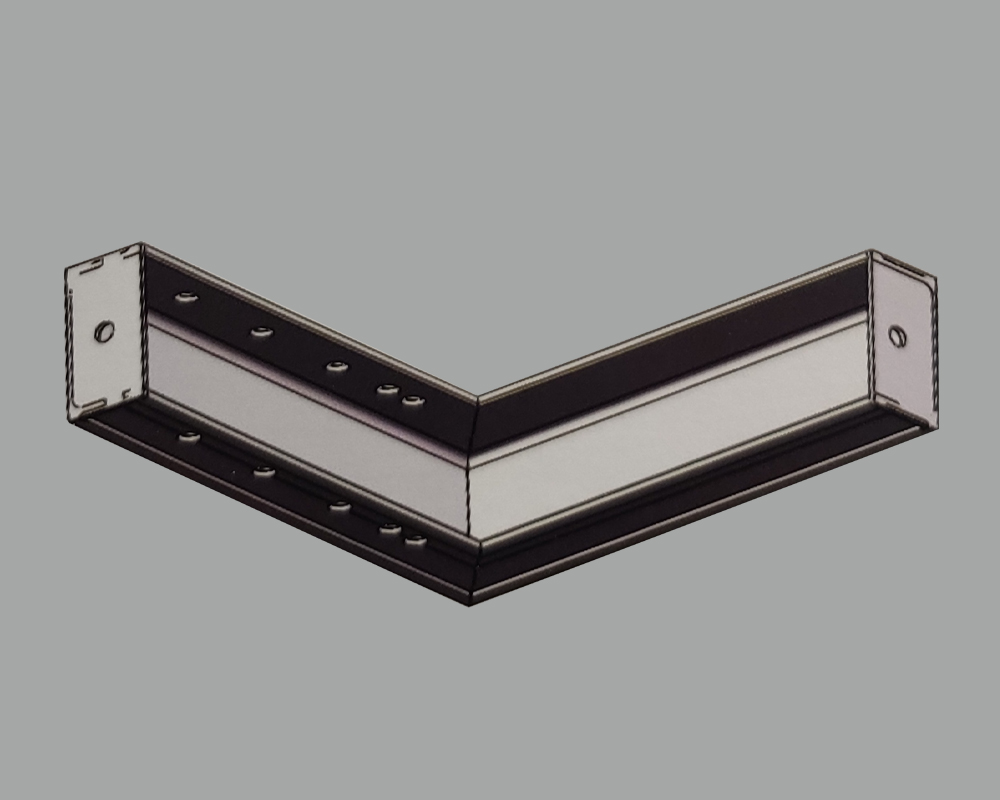

| Kicker Corner KC | starter for external wall panel |
| Specification | Aluminium Alloy 6061-T6 |
|---|---|

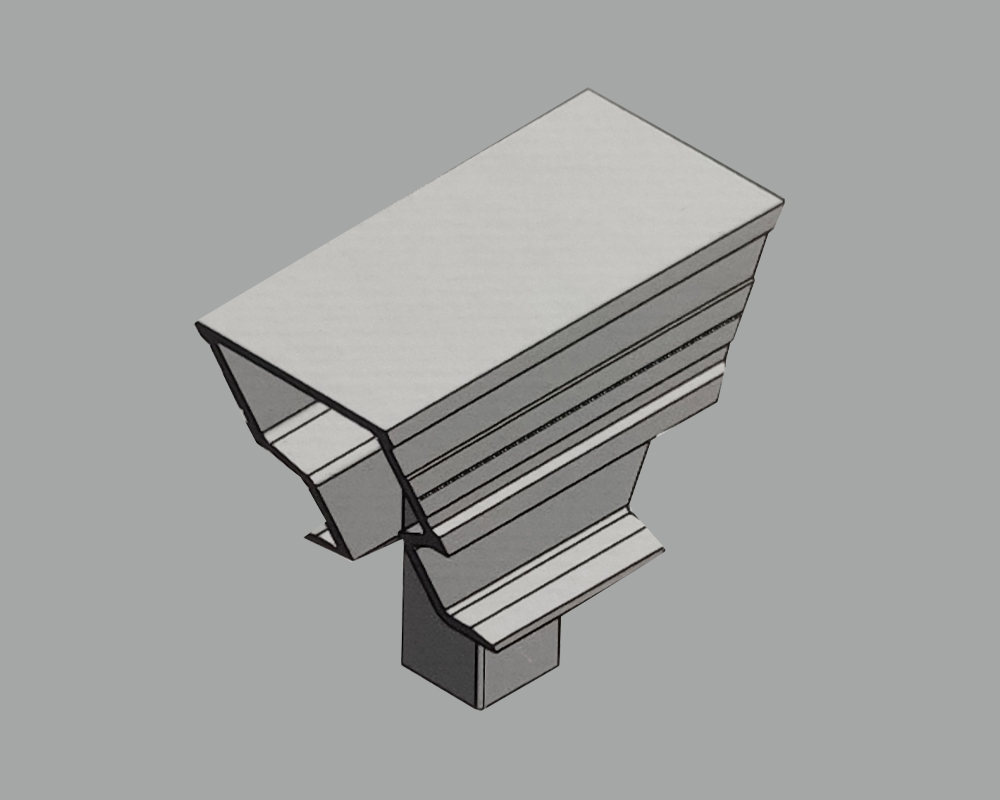

| Prop Head | Used to Joint the beams together (Middle beam or End beam), the pipe support will be placed under the prop head |
| Specification | Aluminium Alloy 6061-T6 |
|---|---|

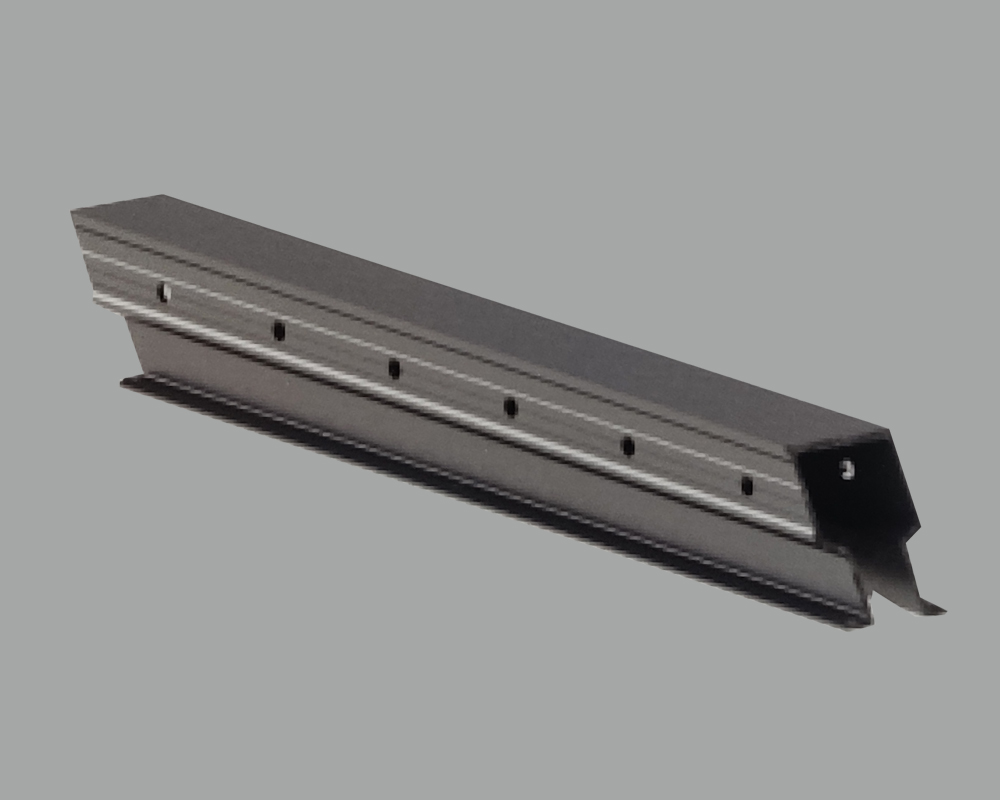

| End Beam | Used to joint the prop and slab corner, the beam support the slab panel |
| Specification | Aluminium Alloy 6061-T6 |
|---|---|

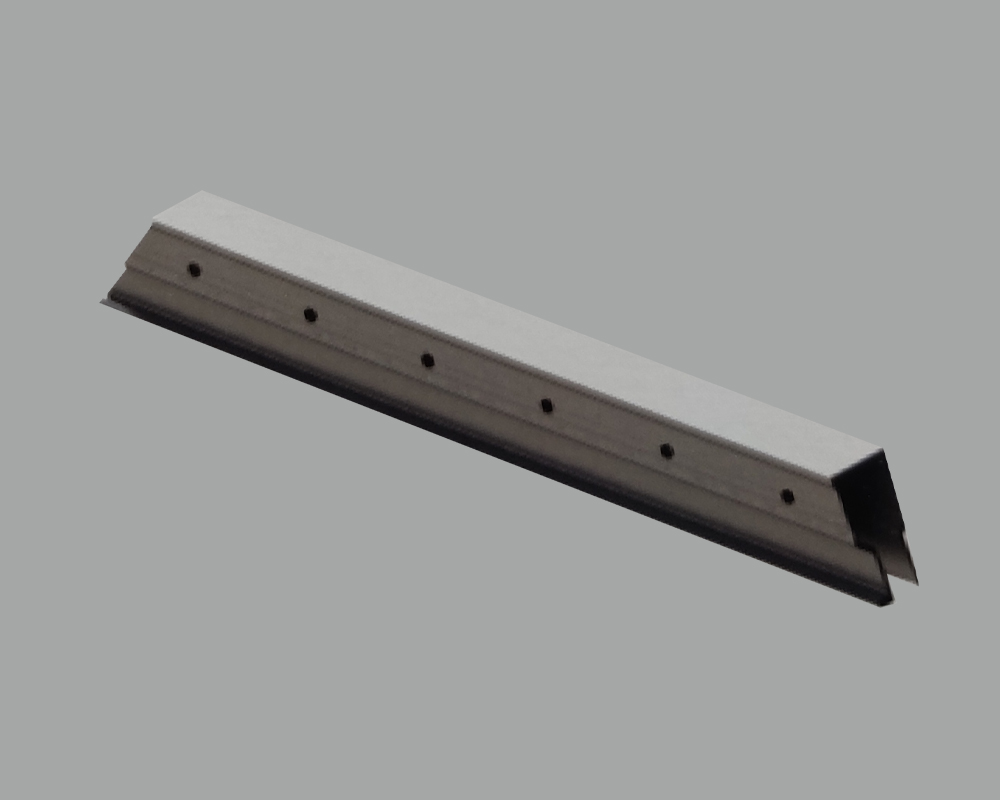

| Mid Beam | Used to joint the prop heads, the middle beam supports the slab panels. |
| Specification | Aluminium Alloy 6061-T6 |
|---|---|

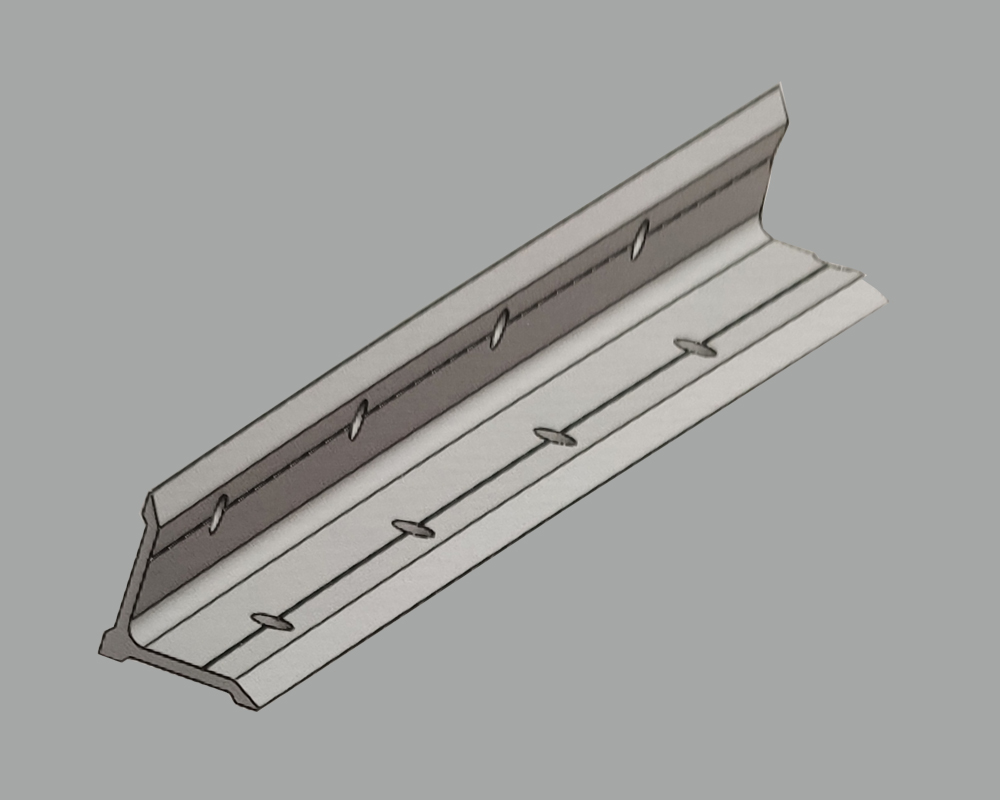

| End Corner | Connection Between two wall panel. |
| Specification | Aluminium Alloy 6061-T6 |
|---|---|

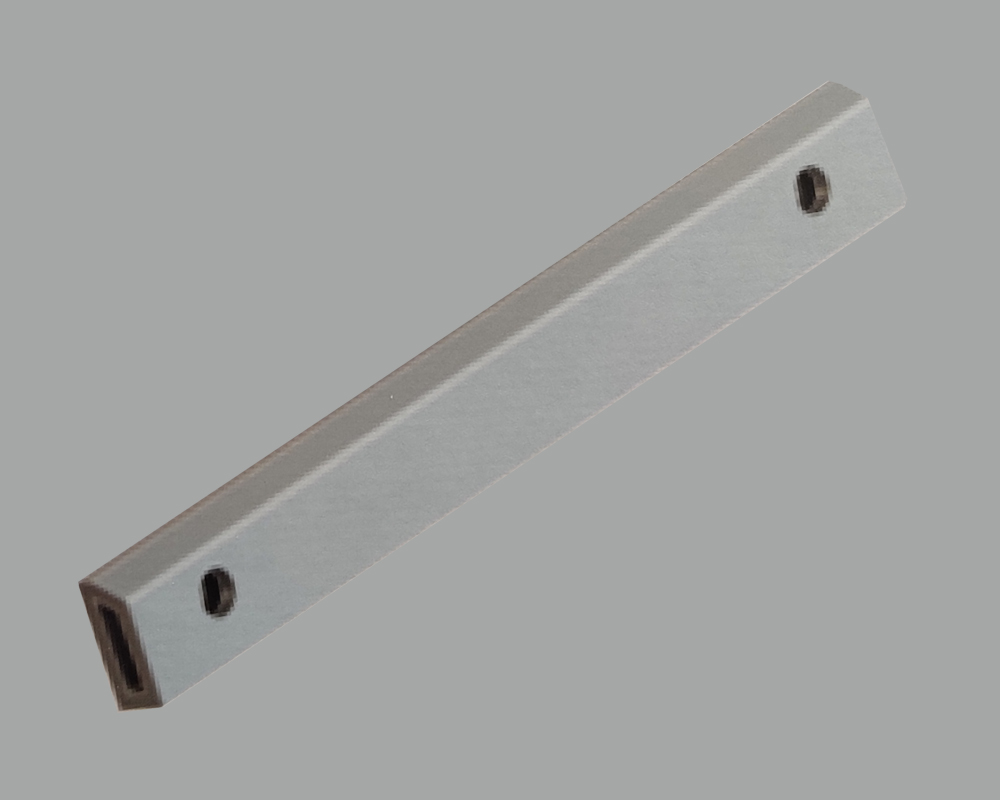

| Joint bar | Used to join the prop head with the beam (middle and end beam). |
| Specification | Aluminium Alloy 6061-T6 |
|---|---|

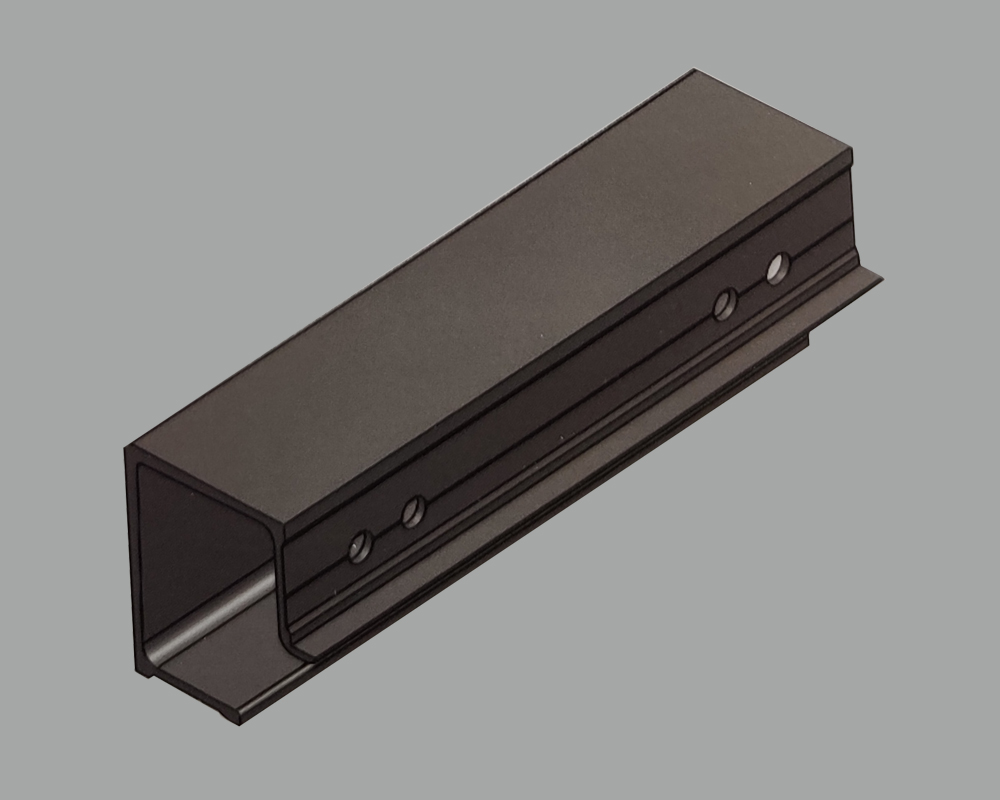

| Soffit Length | Used to joint the prop heads. the middle beam supports the slab panels. |
